Man-Location System
The Man Location System visualizes crew positions in real time on the ship layout through NHE CONNECT, enabling efficient monitoring and quick response in case of emergencies.
Product List

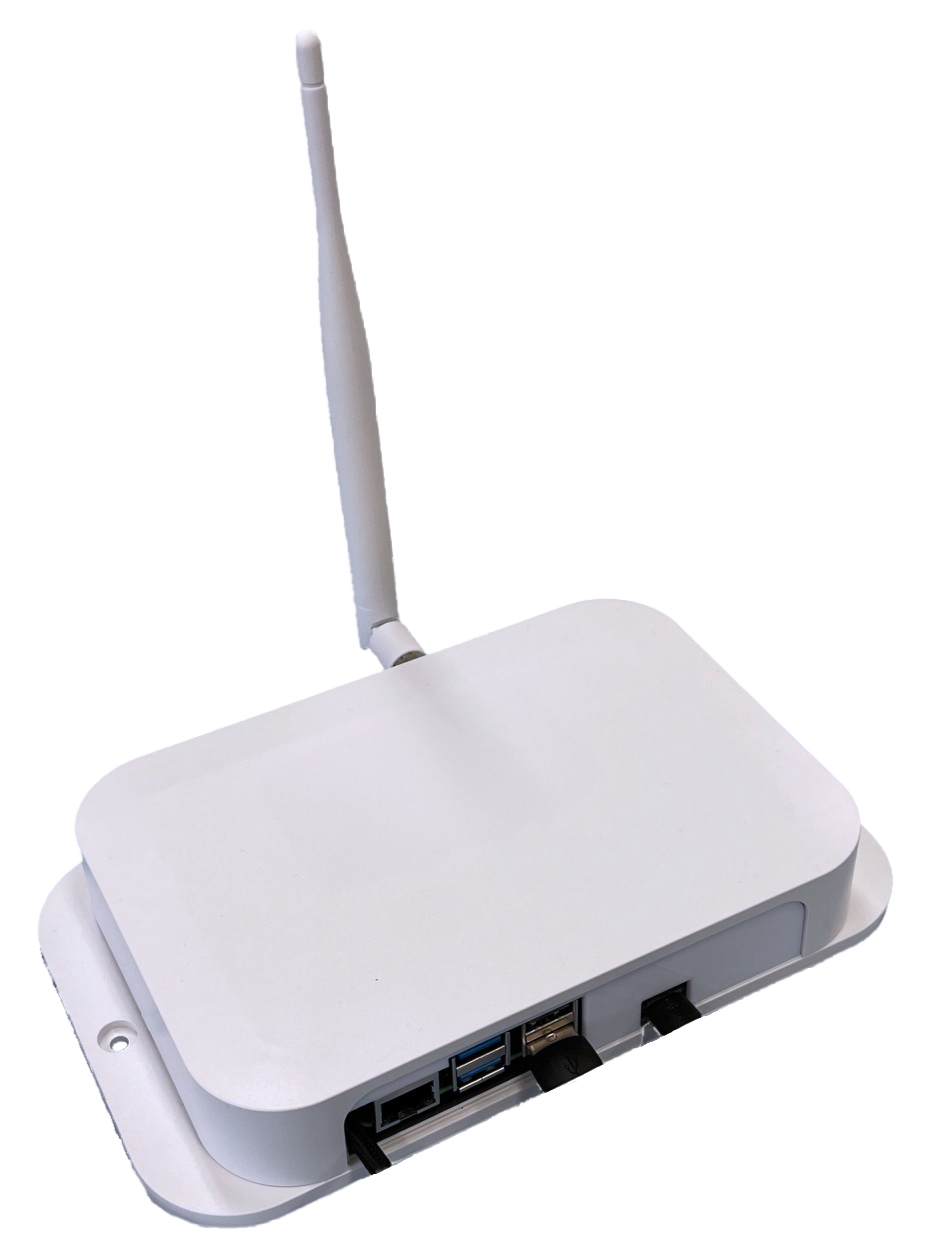

| NCT-ML100 | Man-Location Main unit |

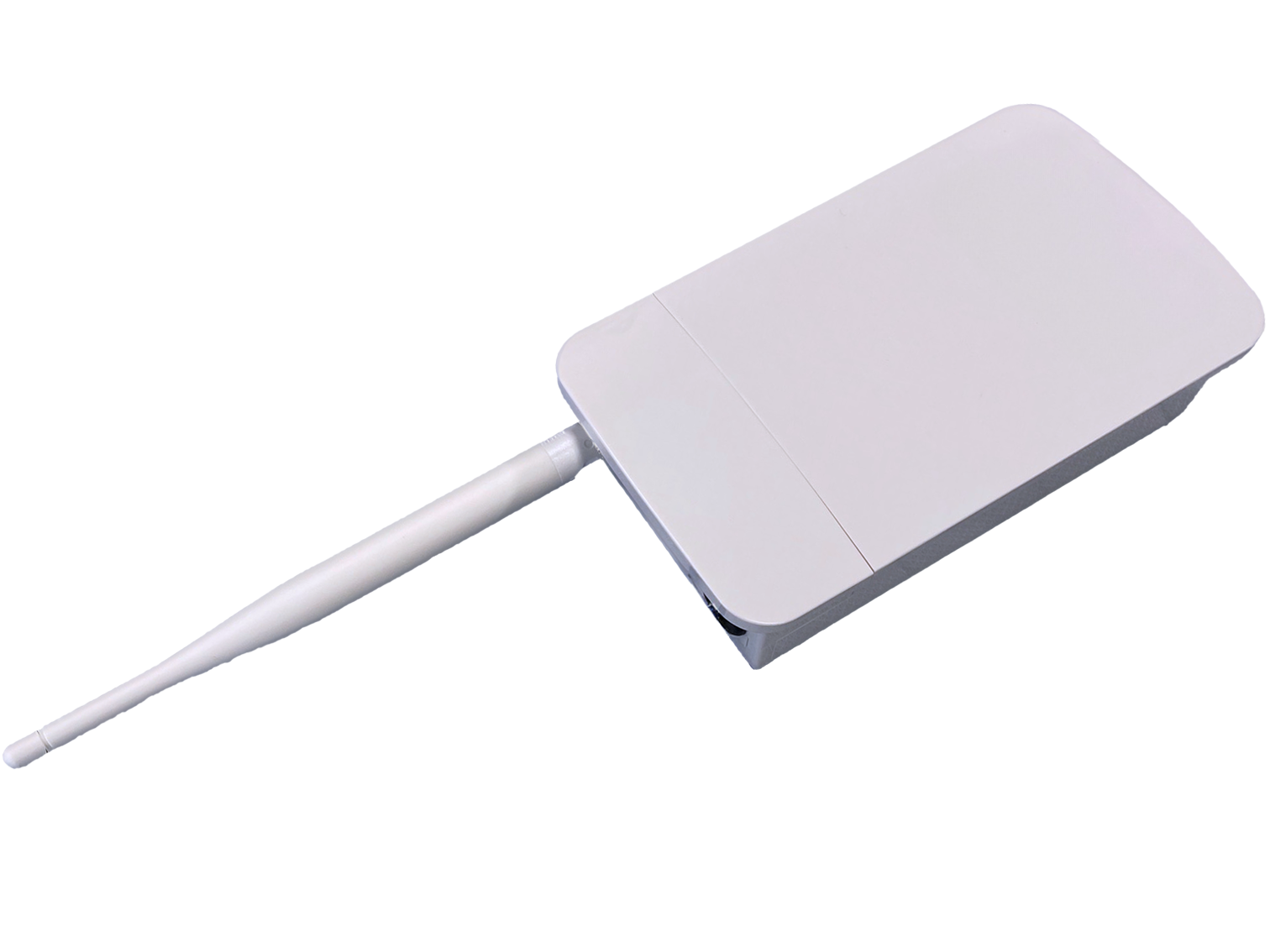

| NCT-ML200 | Man-Location Sub unit |
Key Features
Display passenger location information
In cooperation with NHE CONNECT, the location information of passengers is graphically mapped.
Bluetooth device support
The child unit detects Bluetooth devices carried by passengers and displays their location. *Only available for compatible models.
Healthcare information monitoring
It collects healthcare information from smartwatches and other devices and displays numerical values and alerts on NHE CONNECT.
Adopts LPWA communication
Communication between the parent and child units is achieved using LPWA communication, eliminating the need for additional cabling. *The main unit requires a LAN cable connection.
Specifications
| NCT-ML100 (Main unit) | NCT-ML200 (Sub unit) | |
|---|---|---|
| Connection Port |
USB3.0 Type-A×2, USB2.0 Type-A×2, RJ-45×1 (10BASE-T/100BASE-T/1000BASE-T), USB Type-C×1 (for LPWA board power supply), SMA Connector×1 (for external antenna) |
USB Type-C×1 (for LPWA board power supply) |
| Power | Power Supply: DC 5V, 3A (converted from AC 100V via USB power adapter) | Power Supply: DC 5V, 1A (converted from AC 100V via USB power adapter) |
| Wireless LAN | IEEE802.11b/g/n/ac (2,4GHz / 5GHz) | - |
| Network | Requires one IP address for wired LAN or wireless LAN connection | - |
| LPWA | 920MHz 250mW (Used for communication with sub units) | 920MHz 250mW |
| Demension | W230×D135×H39 (Antenna not included) | W100×D45×H170 (Antenna not included) |
| Mass | 515g (Antenna included) | 140g (Antenna included) |
