Beijer Electronics HMI (Human Machine Interface) Panel [X2 marine]

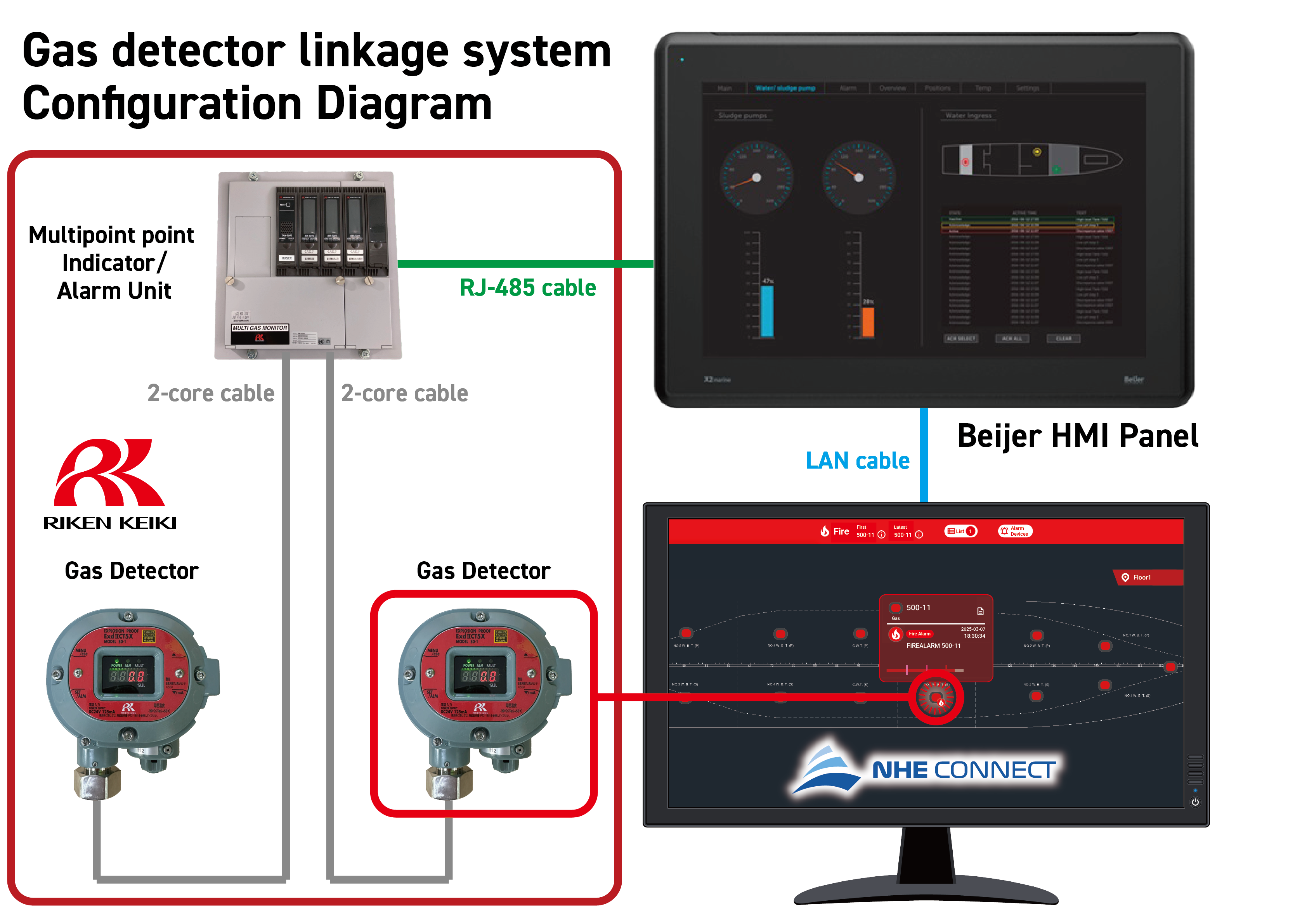

The X2 series represents the next generation of HMI panels, combining sophisticated design with excellent performance to elevate the UX of HMI solutions. Integrated with iX HMI software, these panels enable the creation of smart and efficient integrated systems, providing a user-friendly and highly reliable operating environment across various marine applications, including offshore and onboard operations.
Featuring a simple, stylish black frame and marine-certified panels, the X2 series can be installed in a wide range of locations, such as bridges, engine rooms, and cabins. Optional features include high-brightness displays and integrated CODESYS PLC functionality, offering enhanced flexibility for diverse operational needs.
Product List
| Model | Description |
|---|---|

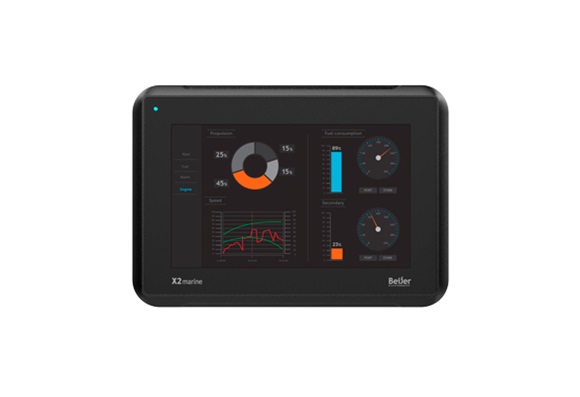

| X2 marine 7 | 7-Inch HMI Panel with iX Runtime |
| X2 marine 7 HB | 7-Inch High-Brightness HMI Panel with iX Runtime |
| X2 marine 7 SC | 7-Inch HMI Panel with iX Runtime and Built-in CODESYS Control |
| X2 marine 7 HB SC | 7-Inch High-Brightness HMI Panel with iX Runtime and Built-in CODESYS Control |

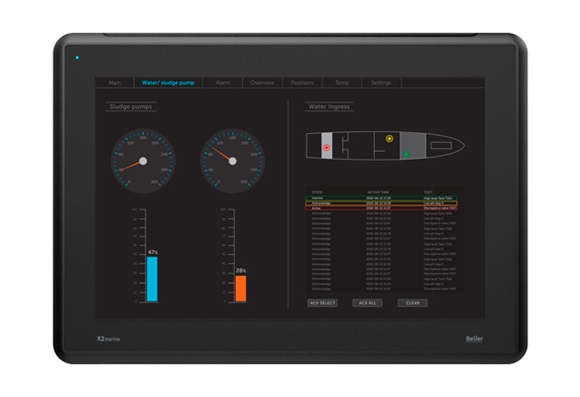

| X2 marine 15 | 15-Inch HMI Panel with iX Runtime |
| X2 marine 15 HB | 15-Inch High-Brightness HMI Panel with iX Runtime |
| X2 marine 15 SC | 15-Inch HMI Panel with iX Runtime and Built-in CODESYS Control |
| X2 marine 15 HB SC | 15-Inch High-Brightness HMI Panel with iX Runtime and Built-in CODESYS Control |
Key Features
Ship Certification
The X2 panel has a higher level of marine certification than any other HMI panel, making it suitable for any location on board the ship.
UL, CE, FCC, and KCC Certified
All X2 series products are certified by UL, CE, FCC, and KCC.
Dimmable backlight
It allows comfortable and safe operation in both bright and low light environments: the backlight can be dimmed continuously down to very low brightness.
High-precision display
An optional 1000cd/m² backlight with anti-reflective film is available, providing excellent visibility even in direct sunlight.
Built-in Digital Output
The X2 marine panels, available with a high-brightness option, feature built-in digital outputs that allow direct connection of alarms, signal lamps, and more.
Internal Isolation
The internal isolation complies with marine standards for burst immunity and surge immunity.
Powerful processor
Powerful single-core, dual-core or quad-core ARM Cortex-A9 processors enable fast screen switching and program execution for even the most demanding applications.
Enhanced Control with BCS Tools
BCS Tools is a CODESYS-based software platform. In the SC version, it provides powerful integrated PLC functionality compliant with IEC 61131-3. By simply adding remote I/O, a scalable and cost-efficient solution can be achieved.
Extensive Driver List
iX Developer offers an extensive list of drivers, enabling broad connectivity with other devices.
Robust aluminum housing
The rugged aluminum housing is IP65, NEMA 4X/12, and UL Type 4X/12 rated, protecting the equipment from rain, snow, splashes, dirt, and dust.
Wide Operating Temperature Range
Supports a wide operating temperature range of −10°C to +60°C, meeting the demands of various industries.
iX Software – The Power of iX Hardware
iX Software provides sophisticated communication tools. Combining top-class vector graphics with ease of use, it ensures reliable operation and seamless connectivity with other devices.
Specifications
| X2 marine 7 (HB, SC, HB SC) | X2 marine 15 (HB, SC, HB SC) | |
|---|---|---|
| Screen size | 7 inch | 15.4 inch |
| Screen resolution | 800×480 (16:10) | 1280×800 (16:10) |
| Display type | TFT-LCD with LED backlight | TFT-LCD with LED backlight |
| CPU |
i.MX6Solo Single Cortex-A9 1.0GHz 512kB L2cache (HB, HB SC: Quad ARM Cortex-A9, SC: Dual Cortex-A9) |
i.MX6DualLite, Dual Cortex-A9 1.0GHz 512kB L2cache (i.MX6Quad, Quad ARM Cortex-A9 1.0GHz 1MB L2cache) |
| RAM | 512MB(HB, HB SC : 2GB, SC : 1GB) | 1GB (2GB) |
| Storage | 2GB SSD(eMMC), 1.5 GB Free for Application Storage | 2GB SSD(eMMC), 1.5 GB Free for Application Storage |
| Input voltage | 24V DC (18~32V DC) | 24V DC (18~32V DC) |
| Maximum Power Consumption | 14.4W (HB: 21.6W, SC: 14.4W, HB, SC: 21.6W) | 31.2W (HB: 33.6W, SC: 31.2W, HB SC: 33.6W) |
| Operating temperature | -10°C～60°C | -10°C～60°C |
| Storage temperature | -20°C～70°C | -20°C～70°C |
| Demension | W204×H143×D50 | W410×H286×D61 |
| Mass | 0.8kg | 3.85kg |
